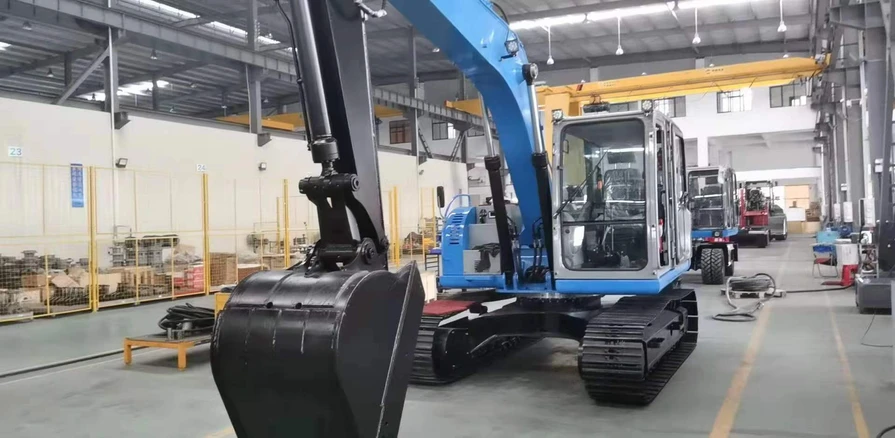

NE150
NE150 consists of rotating platform, walking device, working device, power, hydraulic pressure, electric control, braking and other systems. The motor is used to match the lithium battery, which is energy-saving and environmentally friendly, and the power system is optimized to meet the requirements of efficient operation
TECHNICAL SPECIFICATIONS
Operating Weight
13,900 KG
Bucket Capacity
0.5~0.7 m³
Max. Travel Speed
5.3 km/h
Overall Dimension (L x W x H)
7,750 x 2,500 x 2,760 mm
Max. Digging Reach
8,197 mm
Max. Digging Depth
6,039 mm
Max. Digging Height
8,651 mm
Motor Rated Power
92 kW @ 2,000 rpm
Battery Type
Lithium Battery Power
Battery Capacity
210 kWh
Battery Voltage
.
